Iso Cardboard Making Machine Splicer In Packaging Industry

  • 1
  • 2

Price : 1000~8000 USD

Payment Terms : L/C, D/A, D/P, T/T

Brand Name : AODONG

Model Number : AODONG-1800

Certification : ISO9001

Place of Origin : CN

MOQ : 1 set

Supply Ability : 20 sets per month

Delivery Time : 45 days

Packaging Details : plastic film

Voltage : 220v/380v/440v,220V/380VCan be customized according to the customer

Condition : New

Type : Packaging Line

After-sales service provided : Online support

Automatic grade : Automatic

Weight : 800--2000kg

Dimension(l*w*h) : depends on configurations

Driven type : Hydraulic

Application : Machinery & Hardware,Beverage,Food,Chemical

Packaging material : Plastic,Paper

Packaging type : Cartons,Film

Warranty : 2 years

Name : packaging line

Usage : Making Carton

Contact Now

The Basic Principles Of Splicer In Corrugated Packaging Industry

The Basic Principles Of Splicer In Corrugated Packaging Industry

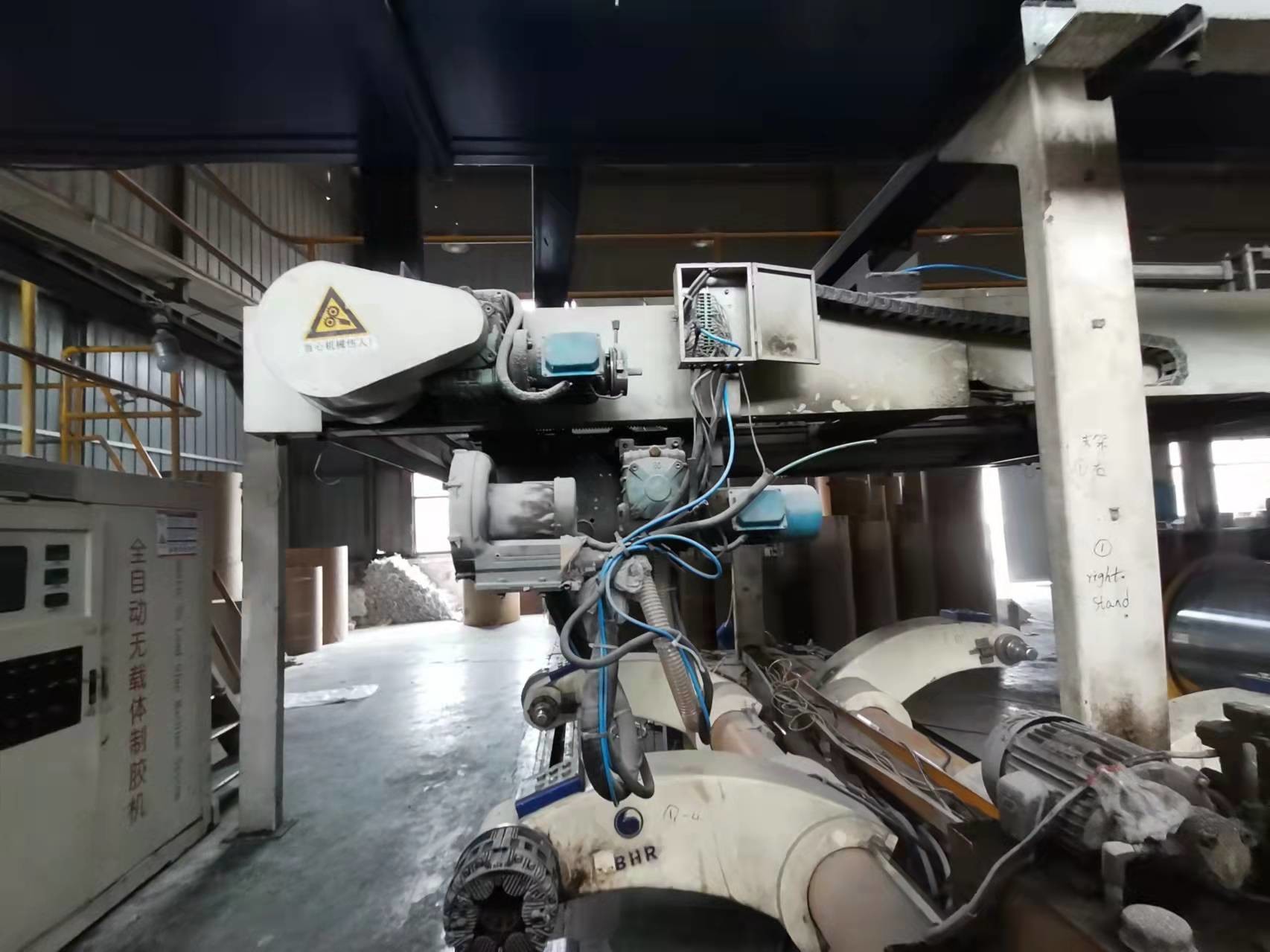

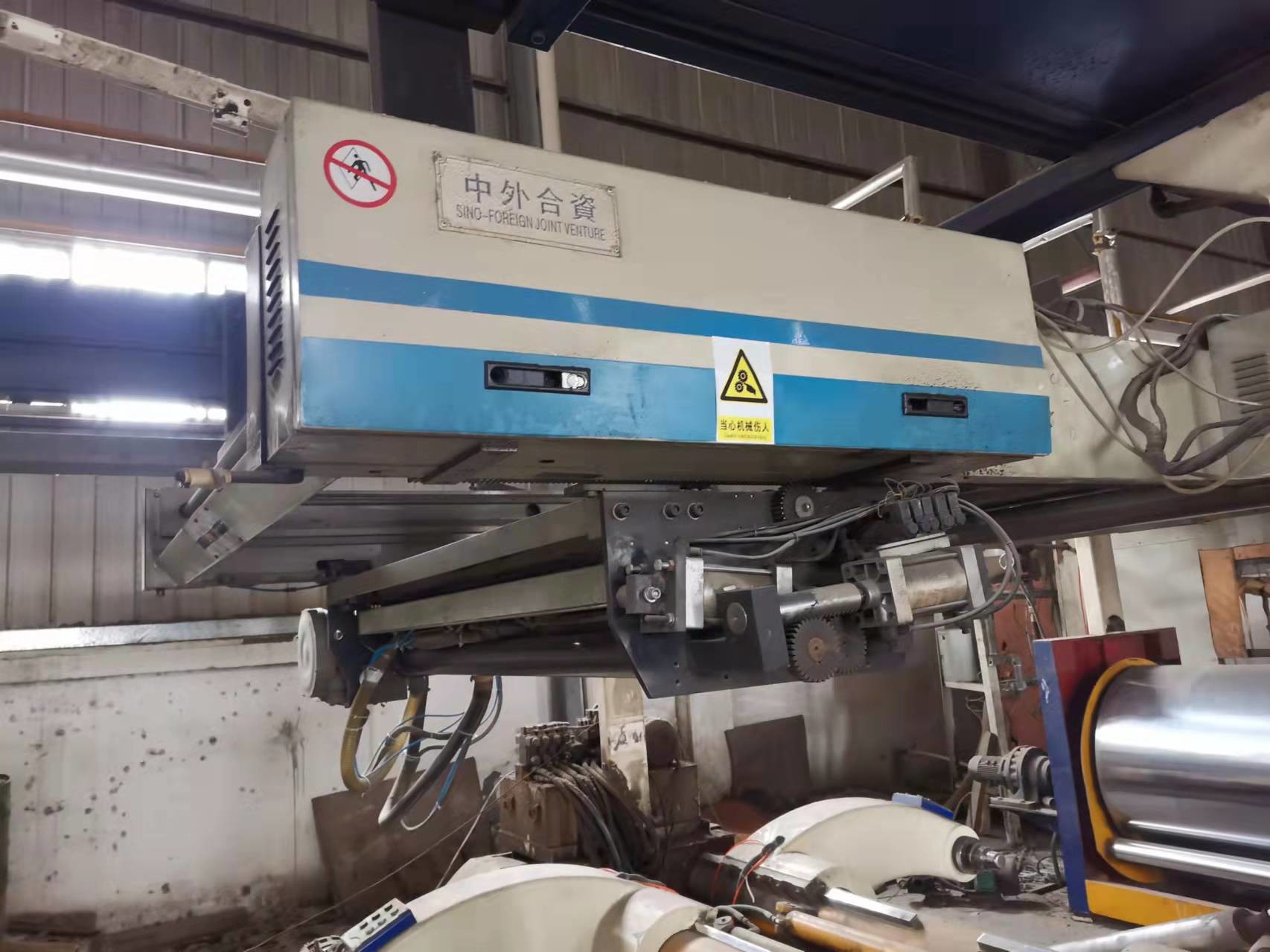

In corrugated packaging industry,splicer is used to connect old and new paper rolls in corrugated board production process, so as to realize continuous production without a downtime. A splicer generally composed of the following basic components: frame, free roller, fixed roller, splicer frame, pressure roller, cutter unit and clamping rod, etc.Now let me introduce several components:
Frame: all components are installed or suspended on the frame. Because it is suspended on the bridge support, the frame does not equipped with selfframe.

Free Roll: Before the paper web leaves splicer, it is running back and forth between the immovable guide roller and guide roller of the storage frame on the side of the paper outlet of the machine.In this way in the storage rack to form a paper storage. In the process of paper splicing,the free roller moves towards the paper outlet side of the machine so as to release the paper web stored therein for continuous production. After that,the storage rack is moved back to the other end of the machine and the paper webare restocked.

Splicer Frame: there is a paper frame at each end of the splicer.The paper frame is composed of an adhesive roller and a guard plate.In the paper frame, the new paper web is first cut in the protective plate, then the paper tape is pasted,and finally the new paper web and the original paper web are pasted through the adhesive roller.
Pressure roller: in the process of paper splicing, the pressure roller is pressed to the adhesive roller, so as to press the adhesive points of two paper web.
Cutter unit: the cutter unit is composed of a knife holder and a blade. The cutter unit cuts off the original paper web. During cutting, the cutter is inserted into a groove on the clip rod.
Iso Cardboard Making Machine Splicer In Packaging IndustryIso Cardboard Making Machine Splicer In Packaging Industry
