380V 50Hz Corrugated Cardboard Making Machine , Corrugated Production Line

Name: 380V 50Hz Corrugated Cardboard Making Machine Corrugated Production Line
Brand: Aodong
Price: 15000 USD

Brand Name : Aodong

Model Number : 5ply

Certification : ISO

Place of Origin : China

MOQ : 1

Price : 15000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 stes

Delivery Time : 30 workdays

Packaging Details : plastic film packing or custom

Type : Packing production line

Design speed : 200m/min

Dimension(L*W*H) : about52m*10m*5m

Voltage : 380V 50Hz

Warranty : 1 year

Brand : Aodong

Muti-ply board : 3/5/7

Contact Now

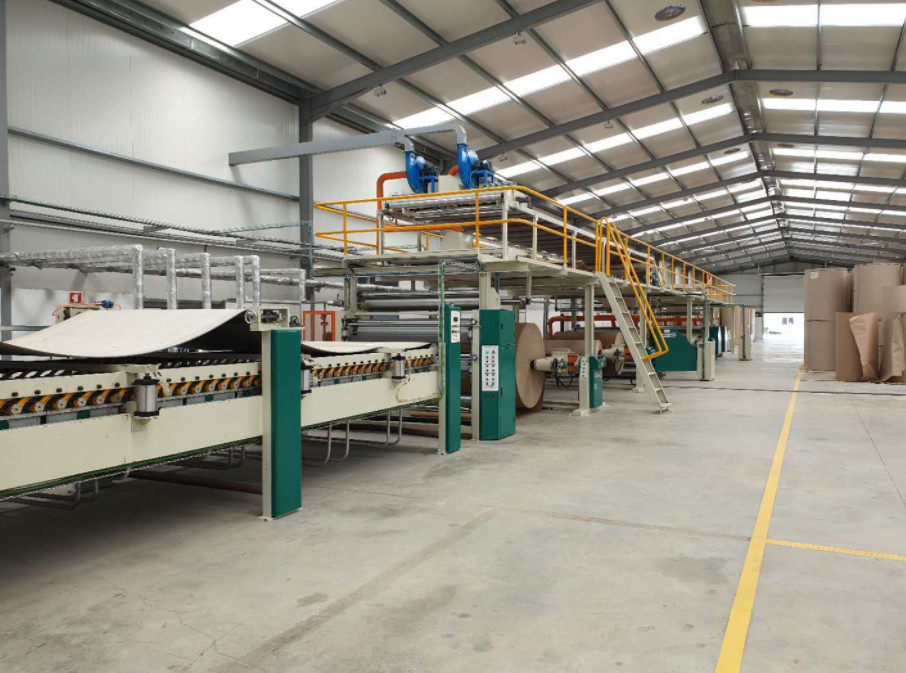

high speed 2200mm automatic corrugated carton box paperboard making machine working line

 	 			2200 type corrugated paperboard production line

 			Effective width
 			2200mm
 			Design produce speed
 			120m/min

 			Economic speed
 			80-120m/min
 			Longitudinal separation accuracy
 			±1mm

 			top paper
 			100-250g/m2
 			Cross-cutting precision
 			±1mm

 			core paper
 			100--250g/m2
 			Electricity demand
 			AC380V 50Hz 3PH

 			corrugated paper
 			100-150g/m2



 			Steam requirement
 			The maximum pressure 16kg/cm2
 			Common pressure10-12kg/cm2
 			use4000kg/Hr

 			Compressed air
 			The maximum pressure 9kg/cm2
 			Common pressure4-8kg/cm2
 			use1m3/min

 			note:Production line speed test paper should meet the following requirements:(the surface temperature of the equipment is not less than 172℃)






1. Flutes combinations: A, C, B, E (or choose by the customer)
2. Steam requirements:
Steam cost: 4000 Kg/Hr Max pressure: 1.2Mpa
Practical Pressure: 0.8-1.2Mpa
3. Power supply: 410V 50Hz (Three phase four wire system)
4. Total Power: About 250 kw
Practical power cost: About 120kw
5. Area of the Production Line covers: About 90m×6m×5m (The specific length is based on the foundation drawing)
6. Corrugated board stacking direction: left or right according to the workshop to make sure the drive in left direction or right direction.
